Nome da marca: BAOFENG
Origem: CN (Origem)
À prova d'água/resistente à água: IP55 de proteção
Bateria incluída: Sim
Alcance máximo: 3 km-5 km

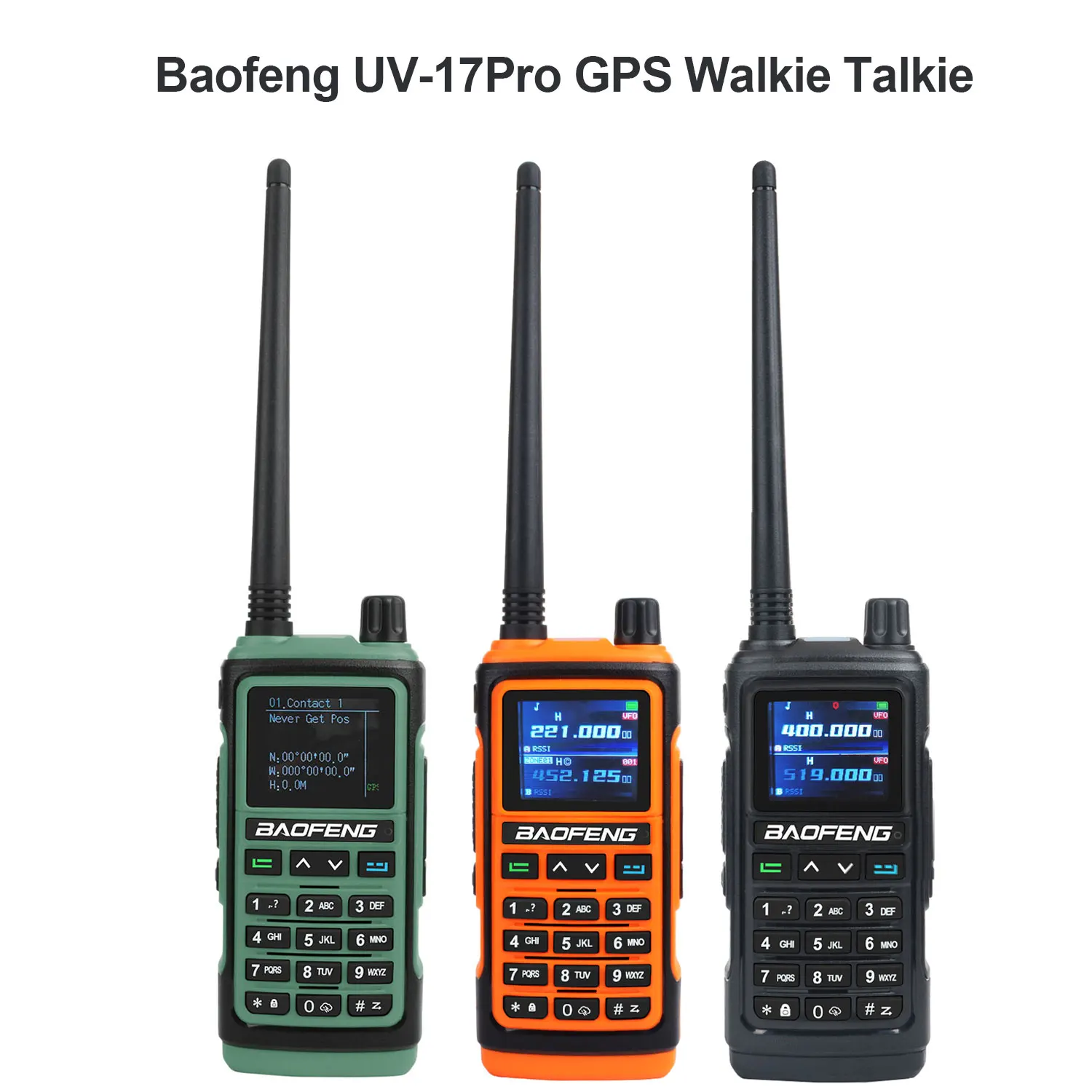

Número do modelo: UV-17Pro
É display: Sim
Tipo de walkie-talkie: portátil
Produto Químico de Alta Preocupação: Nenhum
Usar: outros
Capacidade da Bateria (mAh): 1800
Material: plástico
Canal de Armazenamento: 1000
Faixa de frequência: 6 bands Receive, Tri-bands Transmit
Dimensões: 135mm*61mm*39mm(Antenna Not included)
Potência de saída (w): 3W-5W de potência
Video of UV-17Pro GPS Location Request and Share:

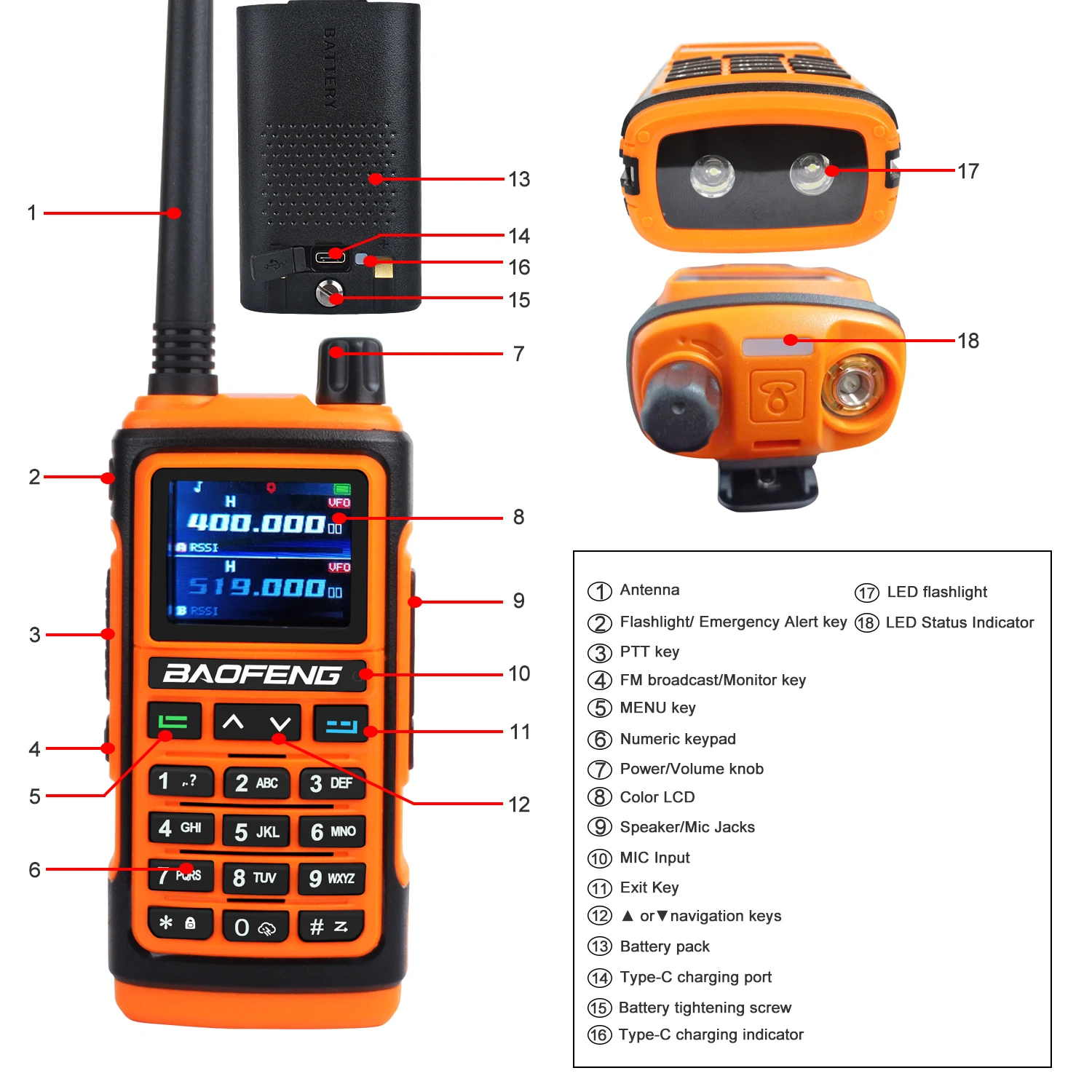

Features:

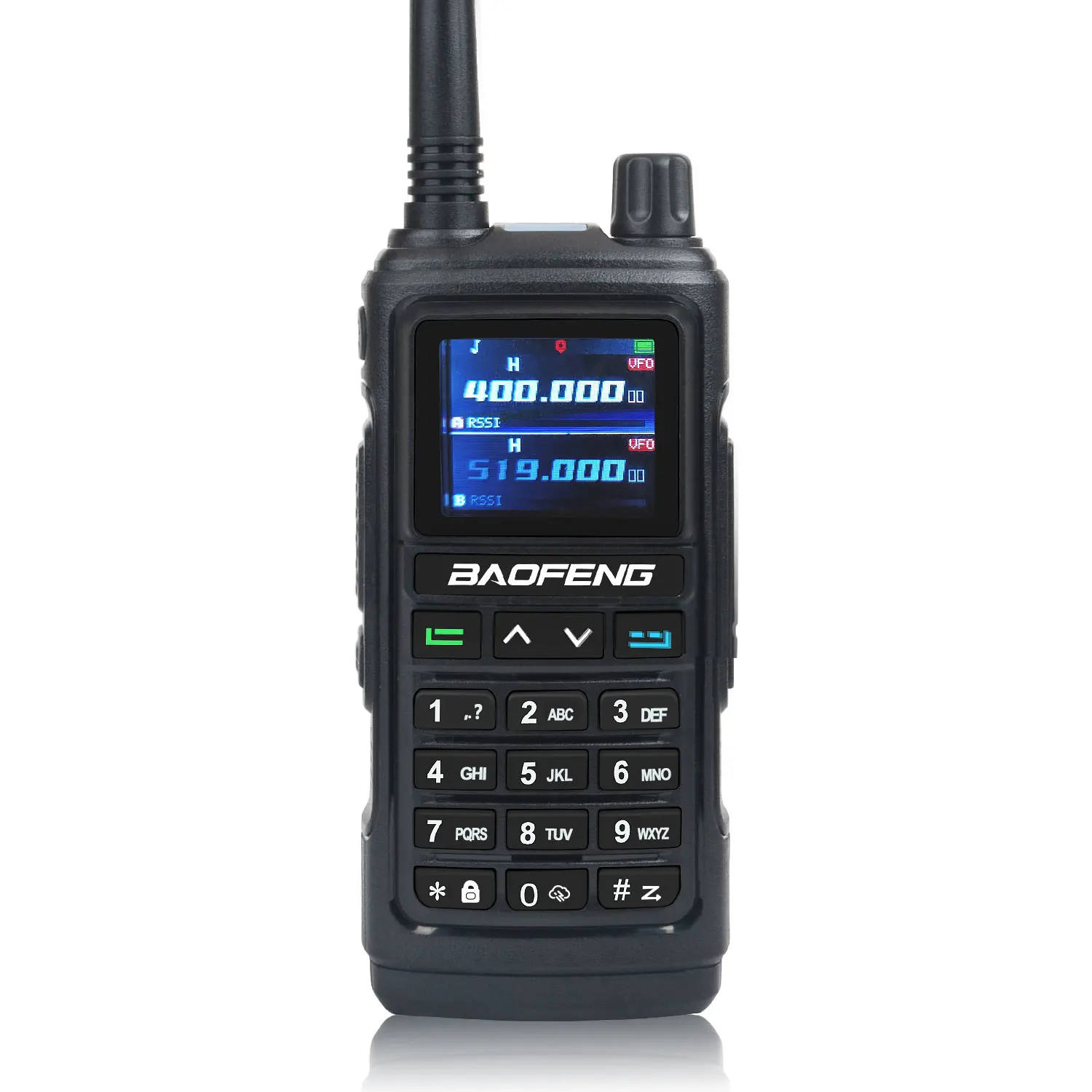

1-1.77”color Screen
2-Frequency Range:
FM: 65-108MHz (RX)
AM: 108-135.99750MHz (RX)
VHF1: 350-355MHz (RX)
VHF2:136-174MHz (TX & RX)
VHF3: 200-260MHz (TX & RX)
UHF: 400-520MHz (Tx & Rx)
3-1000 Memory Channels,5W Output Power
4-NoAA weather broadcast Channels

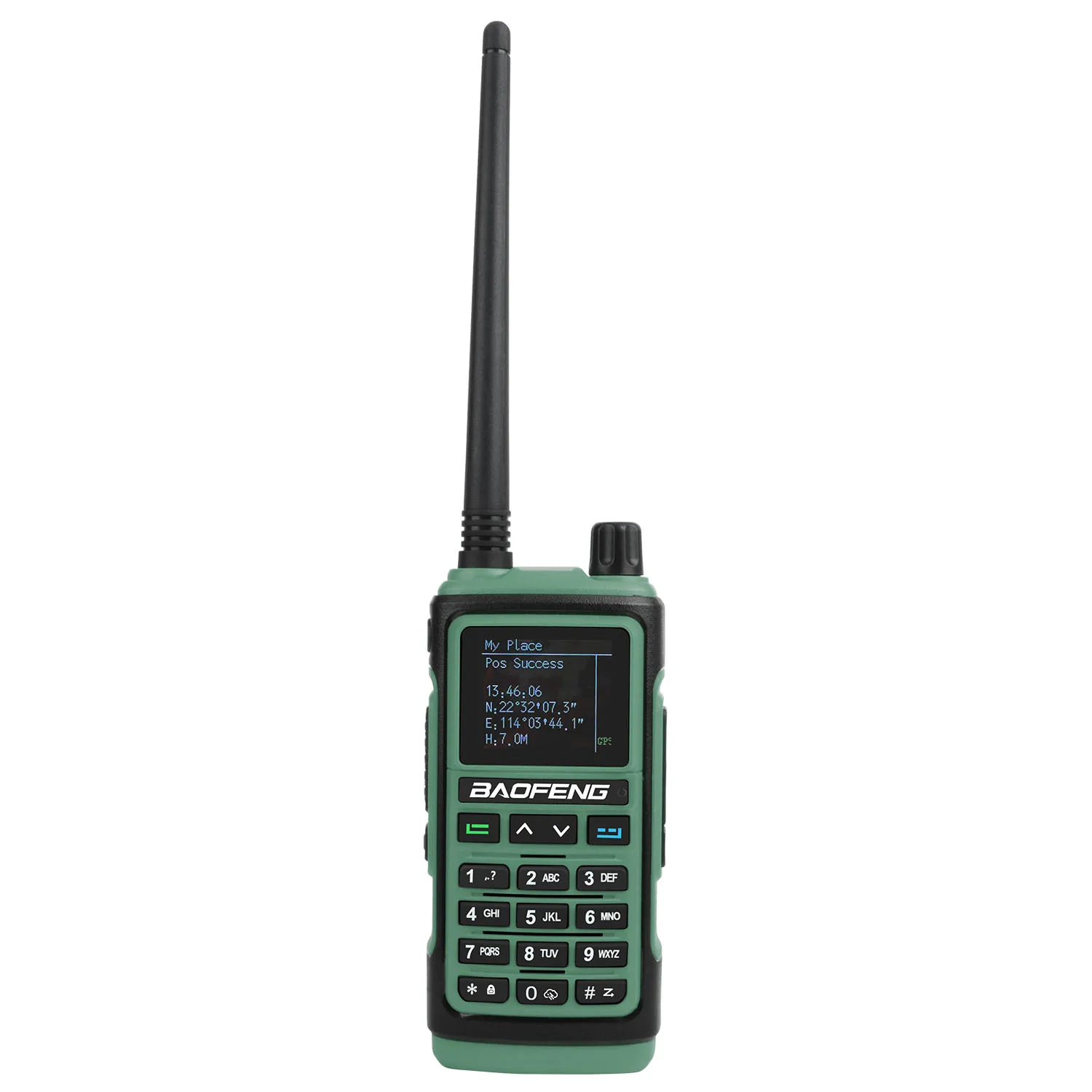

5-GPS/Beidou position and location Sharing in the Groups

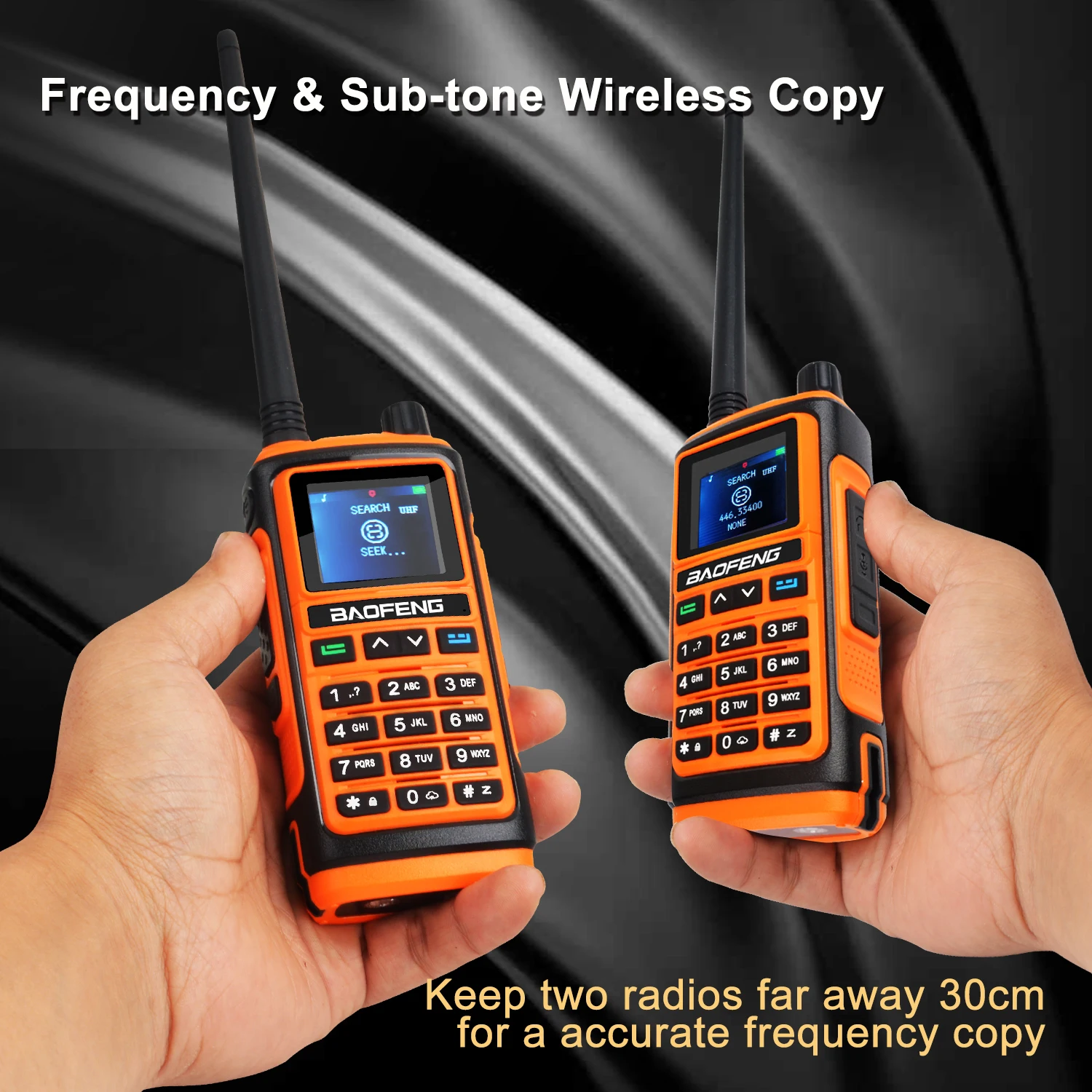

6-Wireless Frequency and its Sub-tone Copy (two radio shall be keep 30cm at least far away for a accurate copy)
7-Dual Watch, Dual Standby
8-Three Scan Modes: Time/Carrier/Search
9-VOX (Voice Operated Transmission)
10-Alarm Mode: Site/Code/Tone

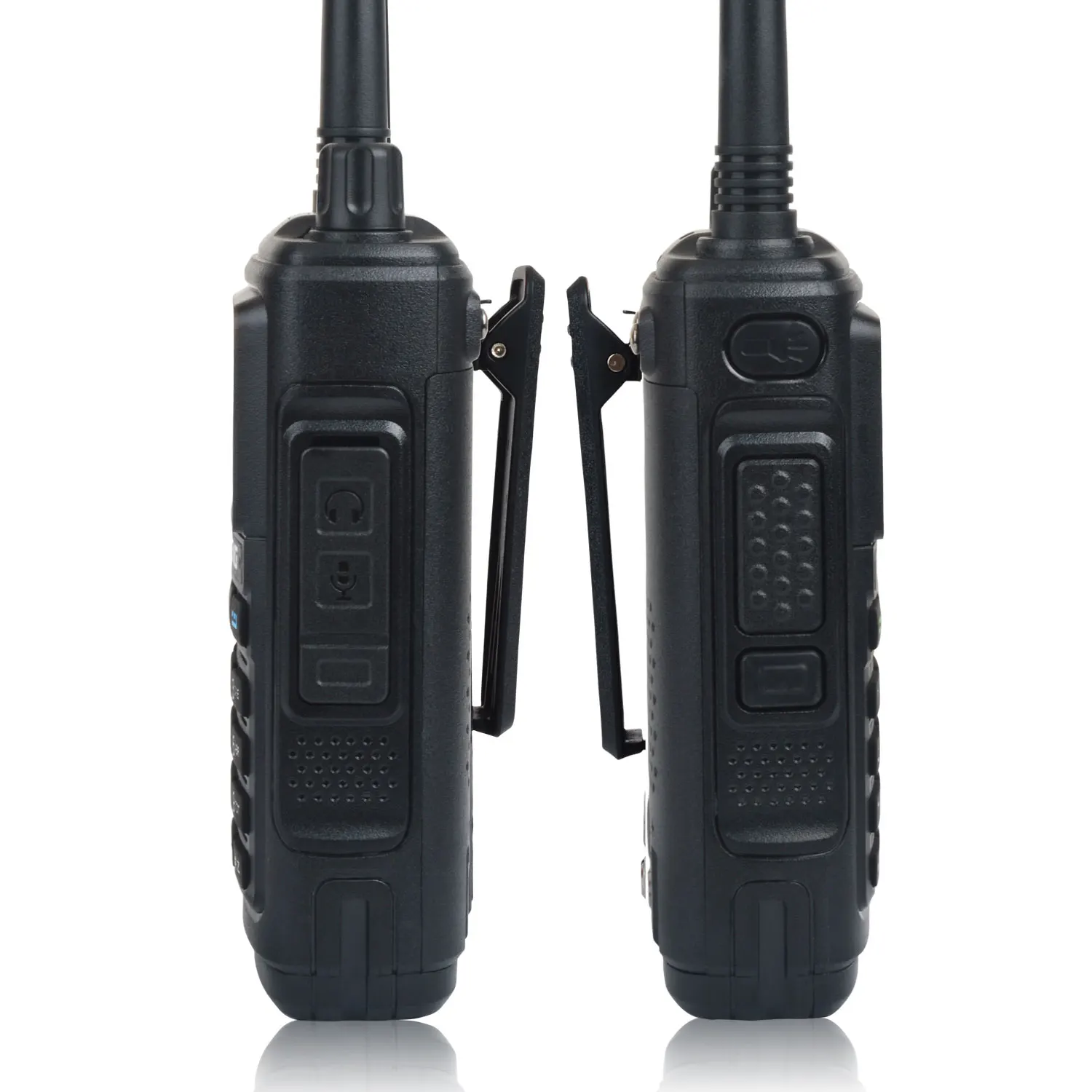

11-Side Key 2 Customized
12-Frequency Hopping
12-1000/1450/1750/2100Hz Tone
13-CTCSS/DCS Scan
14-Roger Beep
15-DTMF

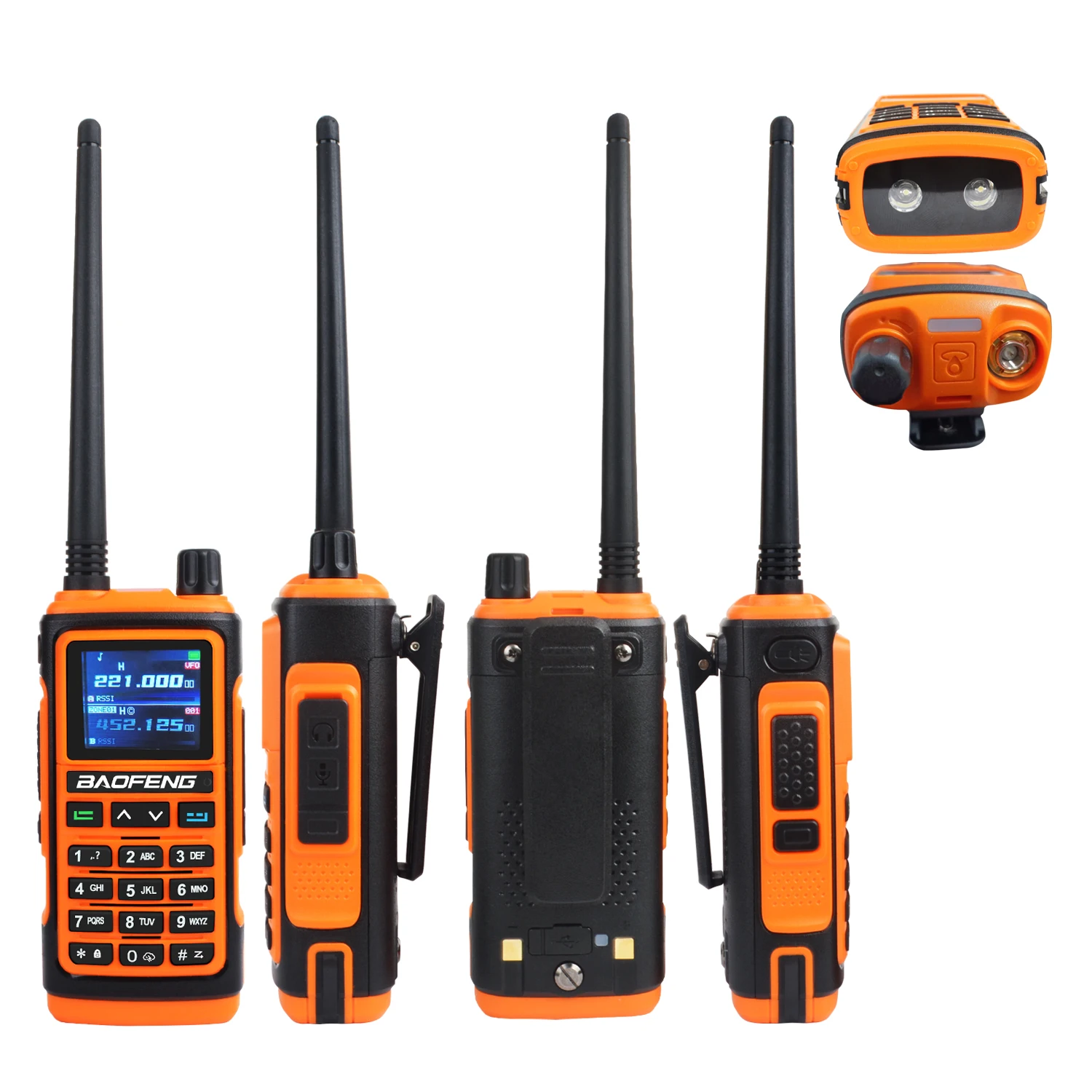

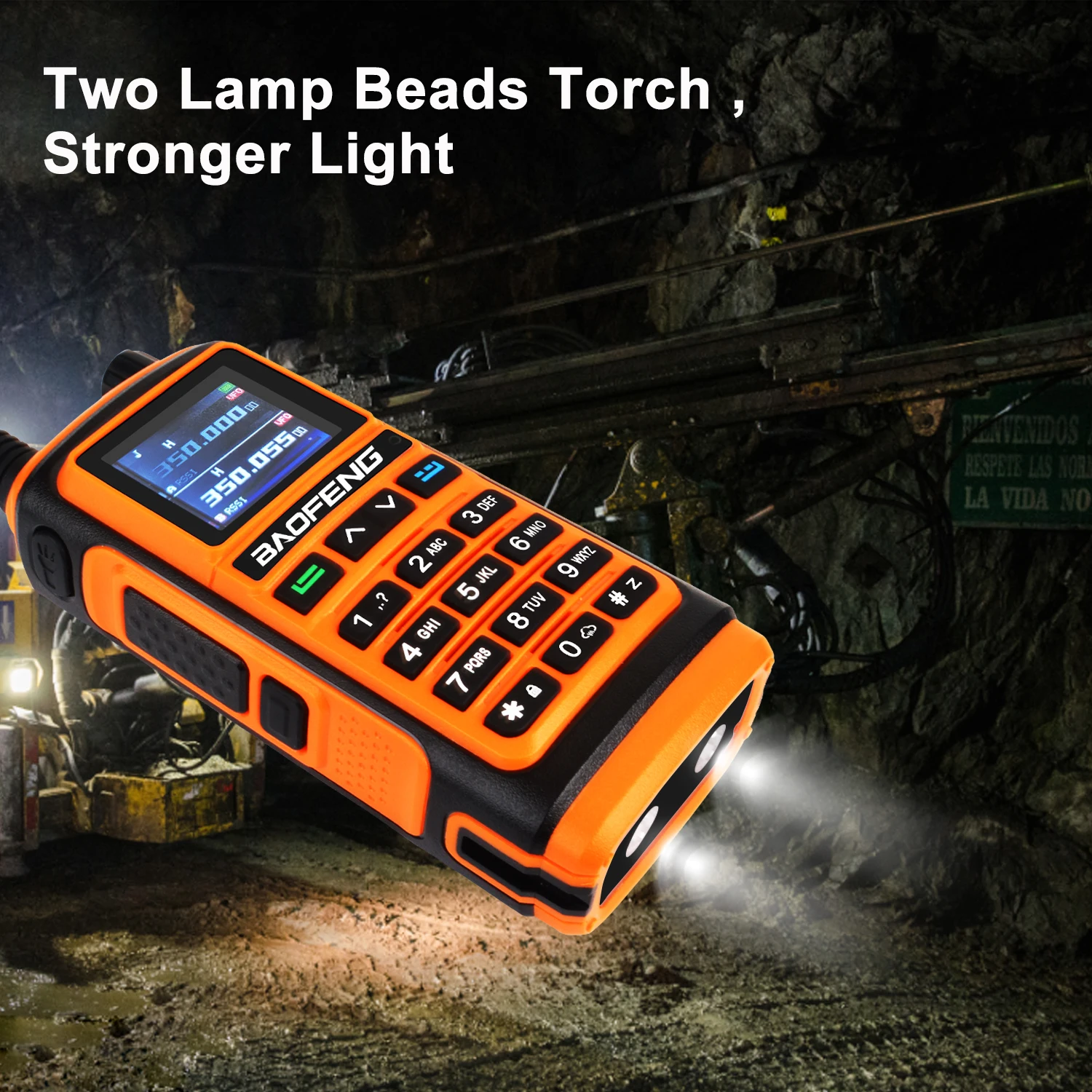

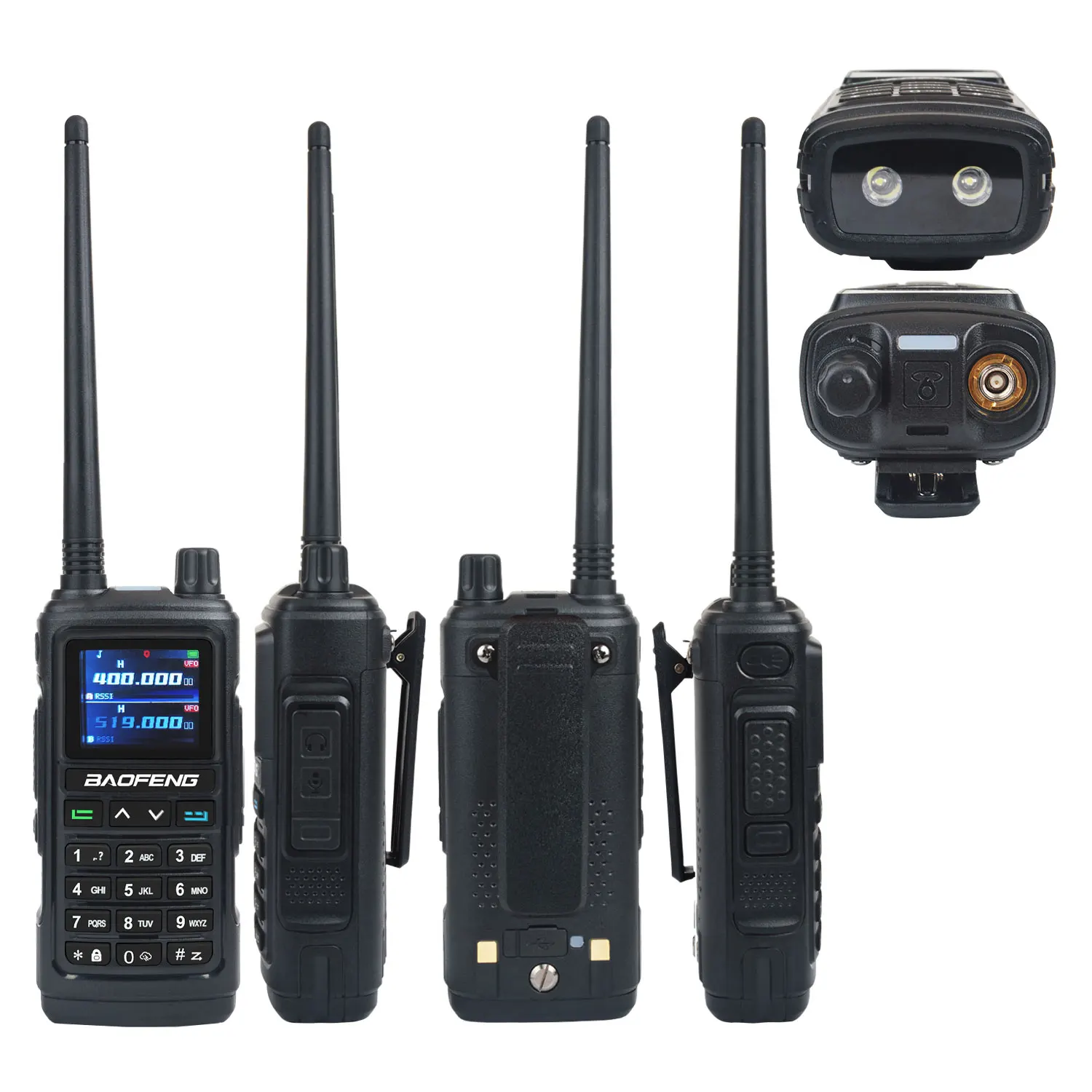

16-Two Lamp Beads Torch, Stronger Flashlight

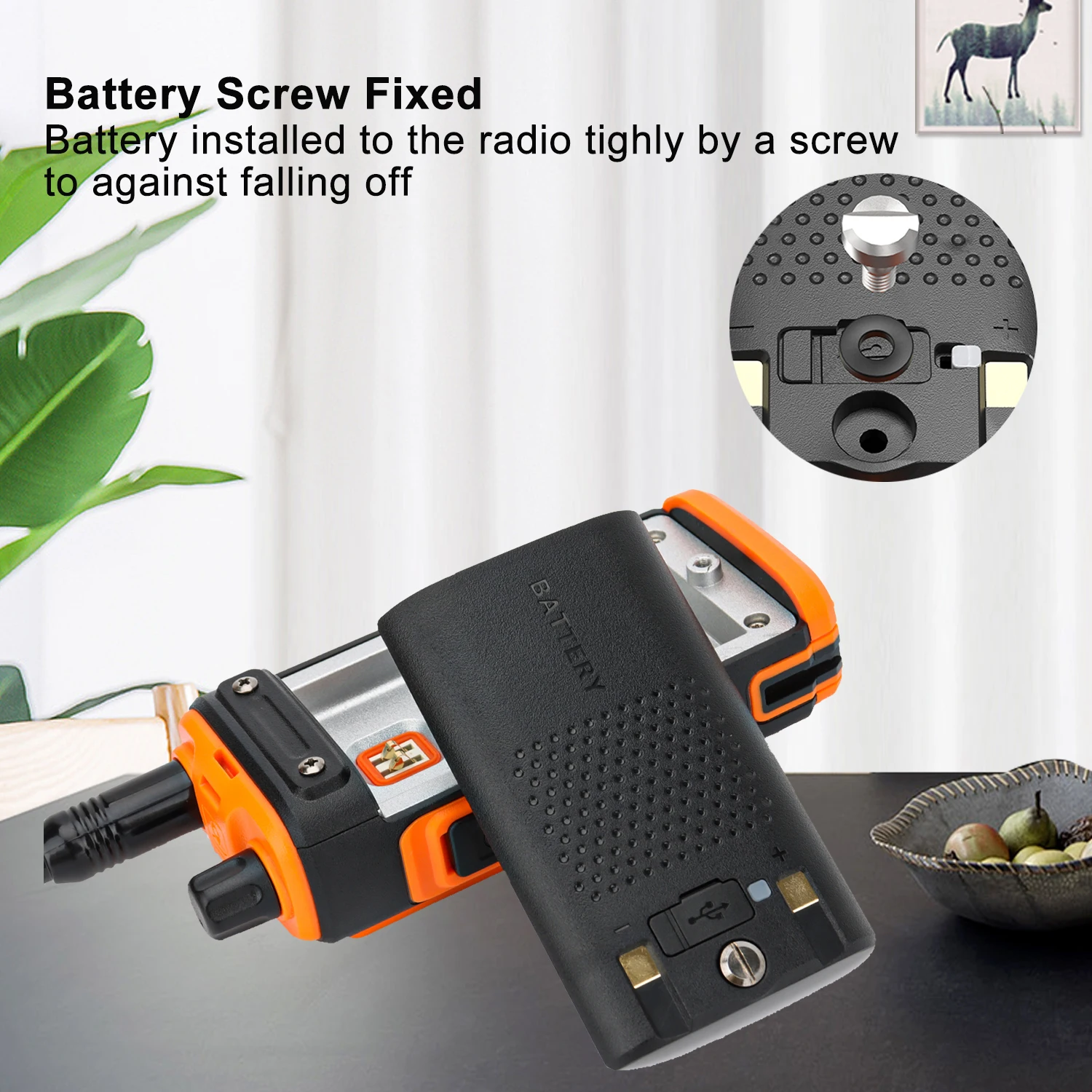

17-1800mAh Rechargeable Battery
18-FM Radio Broadcast (65-108MHz )

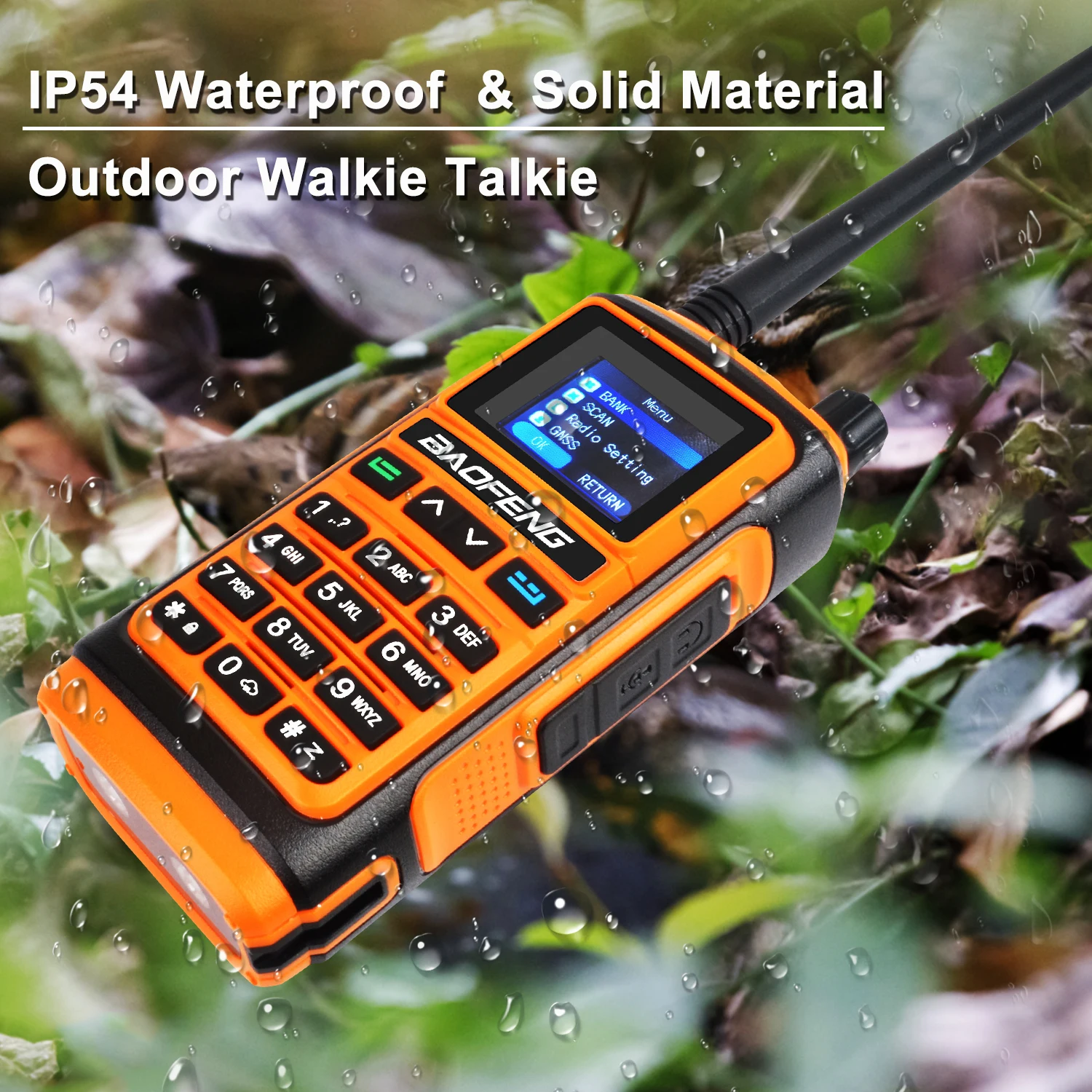

19-IP54 Waterproof

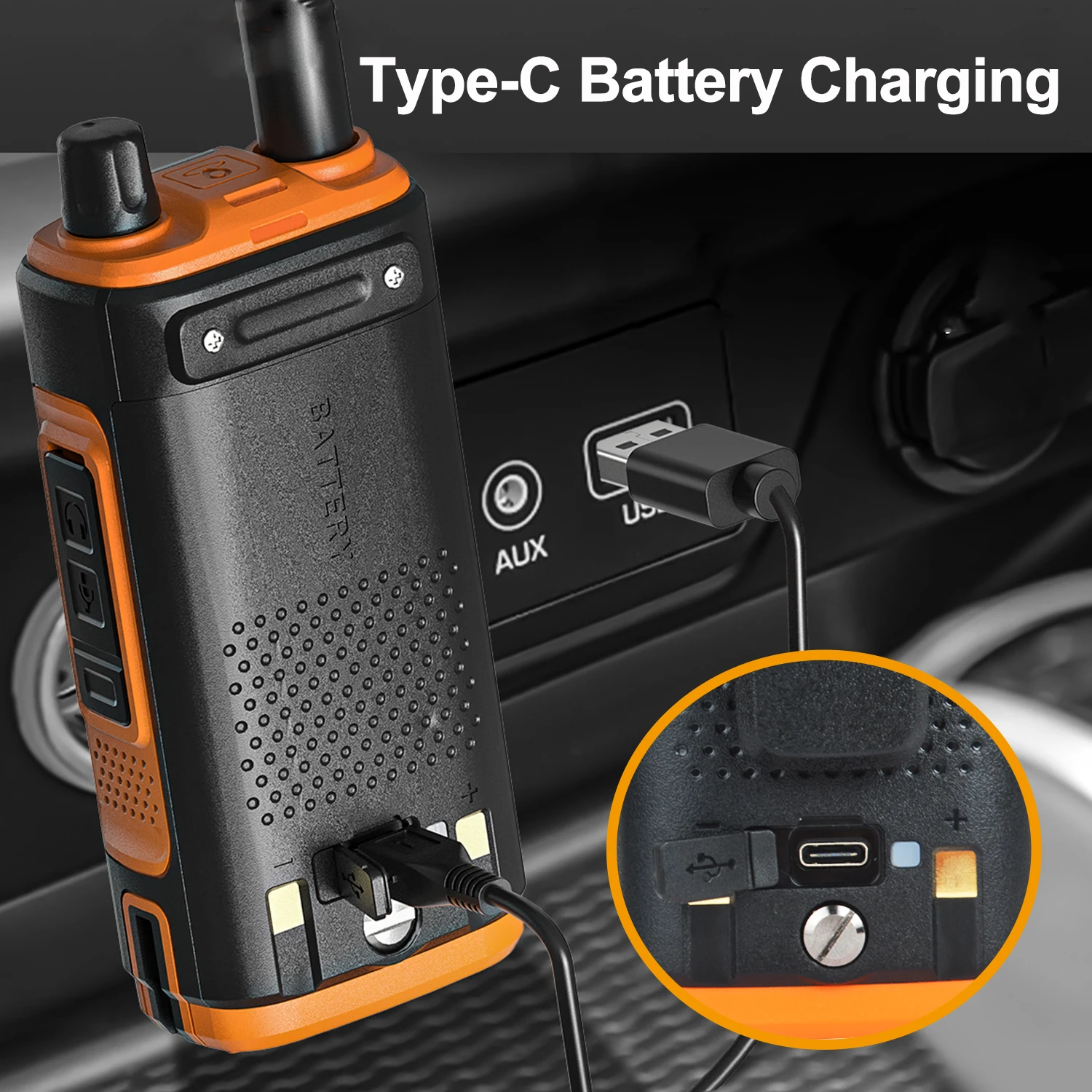

20-Type C Charging Battery
Technical Specifications:
General | |
Channel Capacity | 1000 |
Channel Spacing | 25.0KHz/12.5KHz |
Input Voltage | 7.4VDC |
Current Drain: Standby Receive Transmit | 45mA 380mA ?1.6A(High power), ?1.2A (Low power) |
Operating Temperature | -10°cto 60°c |
Antenna Impedance | 50 ohm |
Radio Dimensions | 135mm*61mm*39mm(Antenna Not included) |
Radio weight | 260g (with Li-ON battery) |
Transmitter | |
Frequency Range (TX) | 136-174MHz & 200-260MHz &400-520MHz |
RF Output Power | 5Watt |
Modulation | 16K ?F3E/11K ?F3E |
Spurious Emission | -16dBm< 1GHz, -16dBm> 1GHz |
Frequency Stability | ±2.5ppm |
Audio Distortion | ?5% |
FM Hum & Noise | 40dB |
Receiver | |
Frequency Range | VHF2: 136-174MHz & UHF 400-520MHz (Scan receiver) FM: 65-108MHz (RX) AM: 108-130MHz (RX) VHF1: 350-355MHz (RX) VHF3: 200-260MHz |
Sensitivity:12dB SINAD | -120dBM |
Adjacent Channel Selectivity | -60dBm |
Intermodulation and rejection | -70dBm |
Rated Audio Power Output | 0.75Wats 16ohm |
Rated Audio Distortion | ?5% |
Note: All Specifications may be modified without prior notice or liability. Thank you!
Package Contains:
1× UV-17Pro Radio Body
1× 7.4V 1800mah Li-ion Battery Pack
1× SMA-Female Dual Band Antenna
1× Desktop Charger with Correct Adapter for your Country

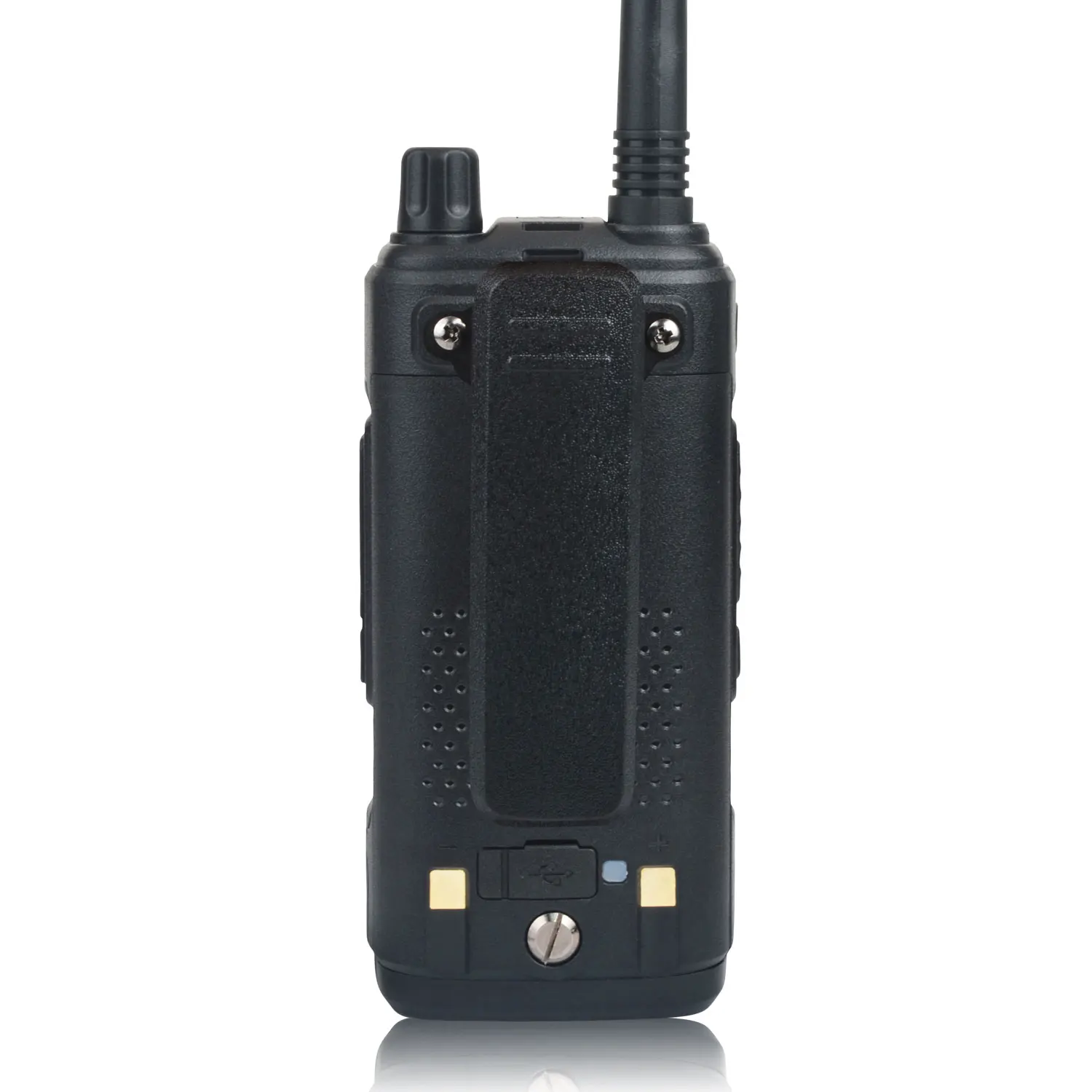

1× Belt Clip
1× Handstrap
1× ENG Manual
